Premium mini fixture options to be fitted with ELR's latest mini module series which are fully packed with advance module technologies. Perfect match with an elegant and classy interior. Mini modular downlight, giant LOR.

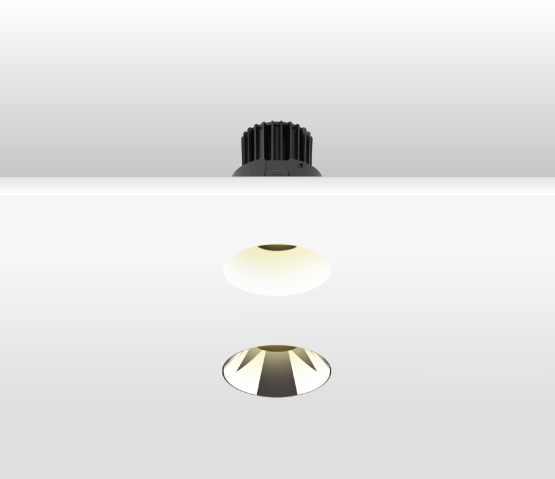

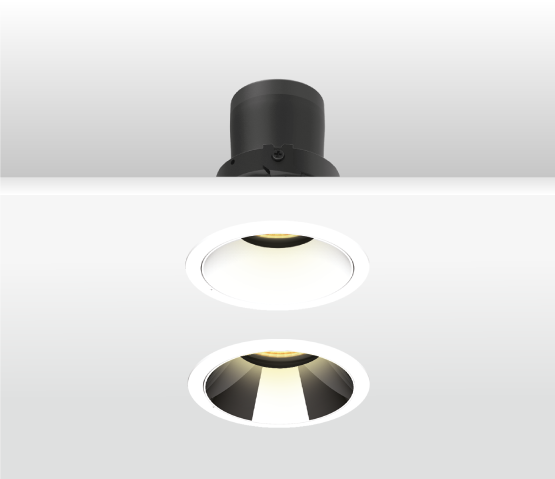

CASTOR luminaires provide a flexible platform to build with a wide range of accessories creating a tailored luminaire for the most demanding application. To add discretion, Castor is available in trimless option.

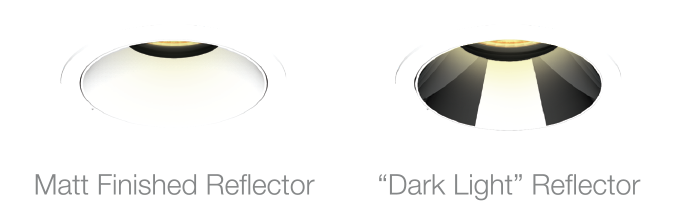

MATT FINISHED OR "DARK LIGHT" REFLECTOR
These pinhole downlights are equipped with excellent glare control and selection preference of either with matt finished reflector or with “dark light” reflector.
ELR's latest pinhole downlight collection utilizes the latest Off-set tilt mechanism that is capable of achieving greater light ouput than conventional tilt, maximising LOR.
60mm diameter ELR Pinhole downlights equipped with ELR 20 Pro and Classic module, capable of multiple LED technology options.
High performance LED drivers are also included, with options of non-dimmable, or a choice of different dimming protocols to suit different applications and requirements of light intensity adjustment.
COST EFFECTIVE NON-DIM SOLUTION
The LED modules are now paired with a new range of non-dim LED driver while maintaining its technological performance and features. This combination offers a cost effective and affordable package that is well suited for entry level commercial and residential applications.
- High quality, uniform and comfort light with low stroboscopic optical flicker <3%.
- Log lifetime of more than 50000 hours, L80 lamp life.
- High energy efficiency with power factor of >0,9.
20 PRO AND 20 CLASSIC MODULE SERIES
Illuminating luminaire with premium lighting technology preference.
º 20 Pro, 6,2W - up to 621 lumen
º 20 Classic, 4,5W - up to 565 lumen
Single Colour Variation
- A wide variation of CCT LED Modules ranging from warm white 2700K to cool white 5000K and option of high (CRI) Ra-95, "ProART".
- Relaxing candlelight effect ELR WARM DIM technology with an outstanding dimming performance from 100% to 0,1% brightness.
- Flexible room temperature can be easily achieved with ELR tuneWHITE™. Light colour from 1800K to 6500K resembles the cycle of sunlight, dawn to dusk.
Capture The Ambience
- ELR flexiK offers an opportunity to fulfill the light colour you fancied. Select light colour by an increment of 100K ranging from warm white to 1800K up to very cool white of 6500K.
