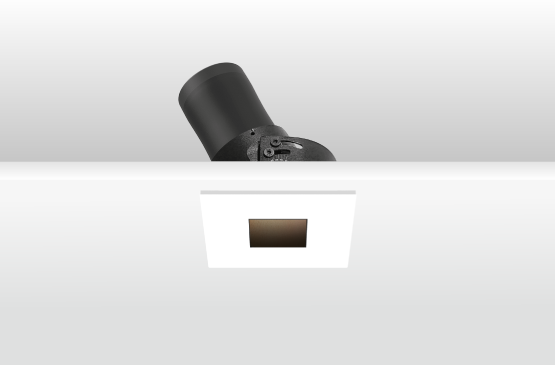

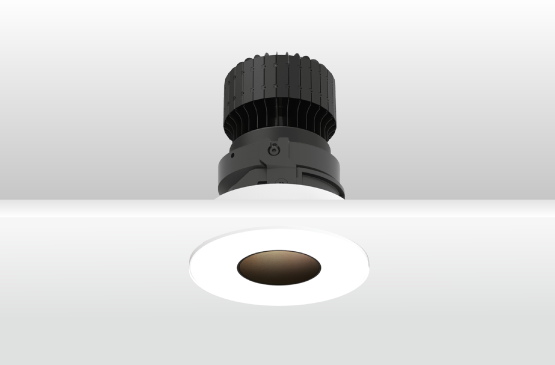

Eclipse Series

Eclipse Series

Premium mini fixture options to be fitted with ELR's latest mini module series which are fully packed with advance module technologies. Perfect match with an elegant and classy interior.Mini modular downlight, giant LOR.

  • PRODUCT INFO

    ECLIPSE are a series of premium pinhole adjustable downlight with “dark silent ring” design (bespoke fixture colours available) . ELR’s signature modular concept with fully interchangeable LED module provides illumination to designated area with optimum lux level, flexibility of beam angle and colour temperature.

  • AUGMENTED ANGLE

    ELR's latest pinhole downlight collection utilizes the latest Off-set tilt mechanism that is capable of achieving greater light ouput than conventional tilt, maximising LOR.

  • LUMINAIRE DIMENSIONS

    60mm diameter ELR Pinhole downlights equipped with ELR 20 Pro and Classic module, capable of multiple LED technology options.

  • DRIVER

    High performance LED drivers are also included, with options of non-dimmable, or a choice of different dimming protocols to suit different applications and requirements of light intensity adjustment.

  • COST EFFECTIVE NON-DIM SOLUTION

    The LED modules are now paired with a new range of non-dim LED driver while maintaining its technological performance and features. This combination offers a cost effective and affordable package that is well suited for entry level commercial and residential applications.

    Low Flicker

    • High quality, uniform and comfort light with low stroboscopic optical flicker <3%.

    Durability

    • Log lifetime of more than 50000 hours, L80 lamp life.

    High efficiency

    •  High energy efficiency with power factor of >0,9.
  • 20 PRO AND 20 CLASSIC MODULE SERIES

    Illuminating luminaire with premium lighting technology preference.

    º 20 Pro, 6,2W - up to 621 lumen

    º 20 Classic, 4,5W - up to 565 lumen

    Single Colour Variation

    •  A wide variation of CCT LED Modules ranging from warm white 2700K to cool white 5000K and option of high (CRI) Ra-95, "ProART".

    Cozy Ambience

    • Relaxing candlelight effect ELR WARM DIM technology with an outstanding dimming performance from 100% to 0,1% brightness.

    Circadian Light

    • Flexible room temperature can be easily achieved with ELR tuneWHITE™. Light colour from 1800K to 6500K resembles the cycle of sunlight, dawn to dusk.

    Capture The Ambience

    • ELR flexiK offers an opportunity to fulfill the light colour you fancied. Select light colour by an increment of 100K ranging from warm white to 1800K up to very cool white of 6500K.



Series
Type
